Introduction

This section is a brief summary of many of the key components or elements of SUDS that are commonly quoted and used (There are others – see CIRIA The SuDS Manual). It should be noted that many can be combined and arranged in a number of ways.

This guide is not a definitive “how to” or provision of “standard details” that is for you guys to develop. But this might help.

SOURCE CONTROL – Local to the site and looking at controlling and treating water where it falls.

  • Green Roofs
  • Soakaways
  • Pervious Paving
  • Bio-retention
  • Rain Gardens
  • Modular Storage

SITE CONTROL – When water needs to be conveyed to other areas or grouped

  • Swales
  • Ponds, Basins and Wetlands

SuDS principles can be applied to any site, it’s just a case of using the right methods and approach for the site conditions you have. That is not to say that the consideration stated, and others, are not important to how a site is drained, as long as they are considered.

BACK TO TOP

Index of Components

1. Green Roofs

2. Soakaways

3. Pervious Paving

4. Bio-retention

5. Rain Gardens

6. Modular Storage

7. Swales

8. Ponds, Basins and Wetlands

BACK TO TOP

1. Green Roofs

There are a number of types of green roof (Brown, Extensive and Intensive).

A roof does not need to be entirely one type or another or even planted. Other equipment could be included (solar arrays etc) but the design needs to be a joined up process to agree the needs of the structure (biodiversity requirement, drainage function, public access and amenity) with the physical constraints.

1.1 Biodiverse and Brown Roofs

Bauder Roofing Solutions - https://www.bauder.co.uk/

Biodiverse and Brown Roofs - replicate an ecological environment and provide a natural living habitat to encourage a wider species of flora, insect and fauna. – note this option may not be green at all.

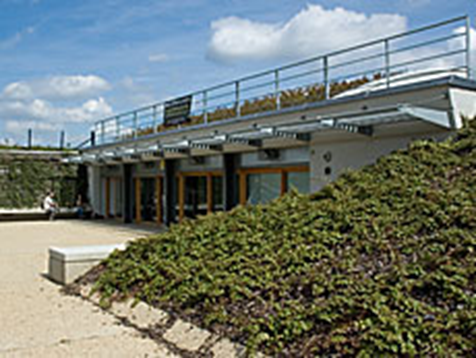

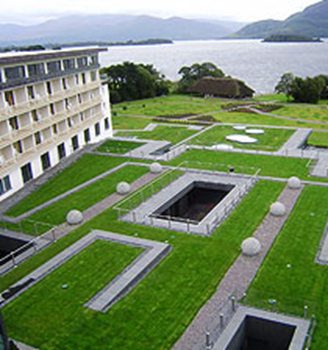

1.2 Green Roofs

Bauder Roofing Solutions - https://www.bauder.co.uk/

Extensive - lightest weight option available with hardy, pre-cultivated sedum vegetation for instant greening of the roof – note, again may not be green all the time

Extensive Substrate-based Systems - greater depth of substrate allowing for a broader range of self-sufficient plants including grasses, herbs and succulents – note, a “proper green roof” as most would recognise it.

Intensive Roofs - where the design may include lawns, flowerbeds, shrubs, trees all intermixed with paths, driveways and patios. These roofs also include vegetable plots, sports grounds, and park land. – Note, this could be a podium deck in which case paving and landscaping could form part of the “roof”.

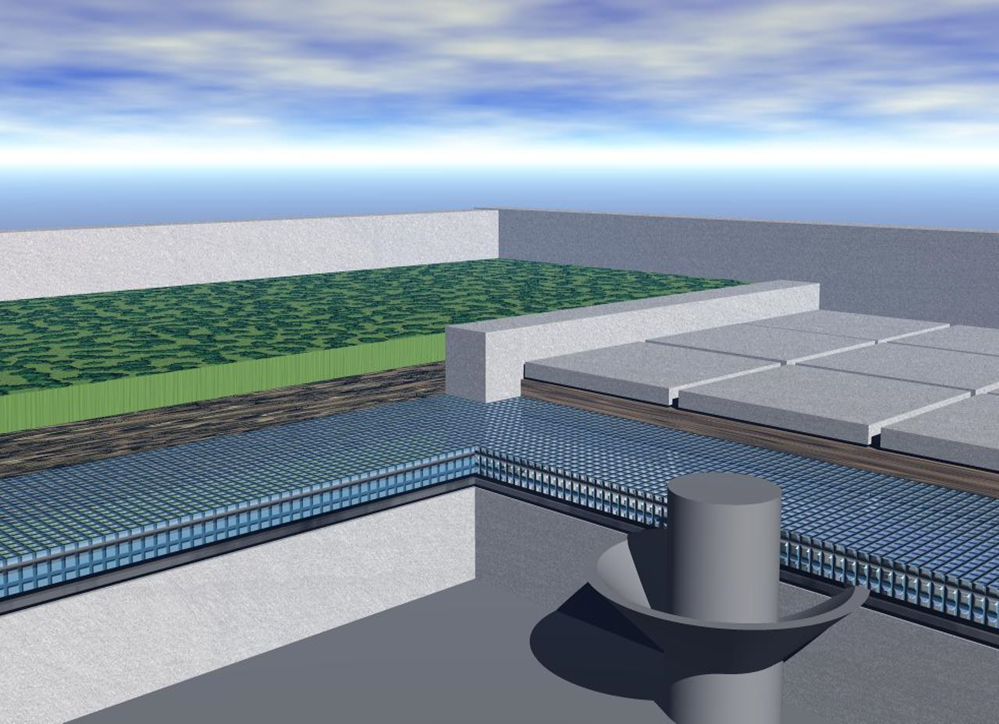

1.3 Blue Roofs

Bauder Roofing Solutions - https://www.bauder.co.uk/

Simply put, this is a green roof hat has been designed to retain/detain as much water as possible from a rainfall event – usually within a reservoir media below the surface

BACK TO TOP

2. Soakaways

There are a number of methods of infiltrating surface water into the ground.

This can be via discrete point sources such as house, trench and ring soakaways where the infiltration is usually designed to flow from the sides of the structure through to modular, blanket and basin soakaways where infiltration is predominately from the base of the structure.

2.1 House Soakaway

  • Individual properties draining to a low cost rubble filled pit usually located within the property boundary;
  • Shallow construction, typically 1m3
  • Un-adopted system that would still fall outside the Adoption criteria but may need Building Control approval;
  • Typically designed to BS 365 and a 10 year design life, although more common lately is to increase the design standard to meet site wide requirements;
  • Factor of safety for infiltration rate needs to be related to location and increased if flooding presents a risk (CIRIA C697); and
  • Exceedance flows will need to be considered for the more extreme events.

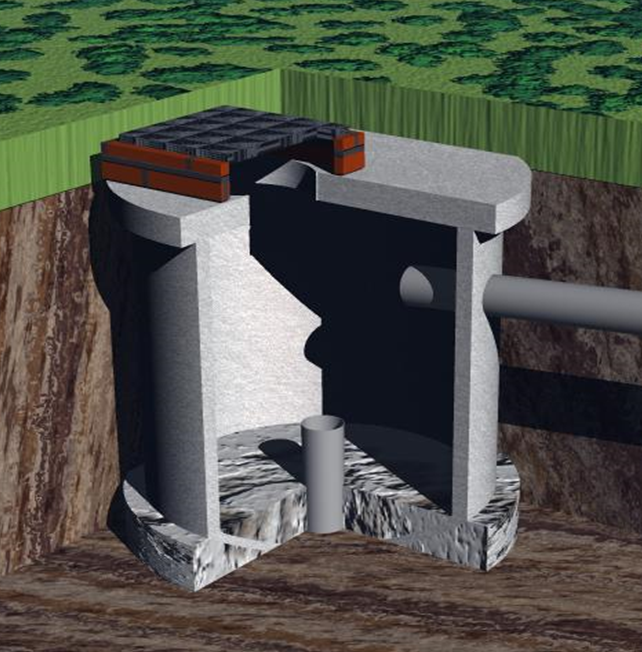

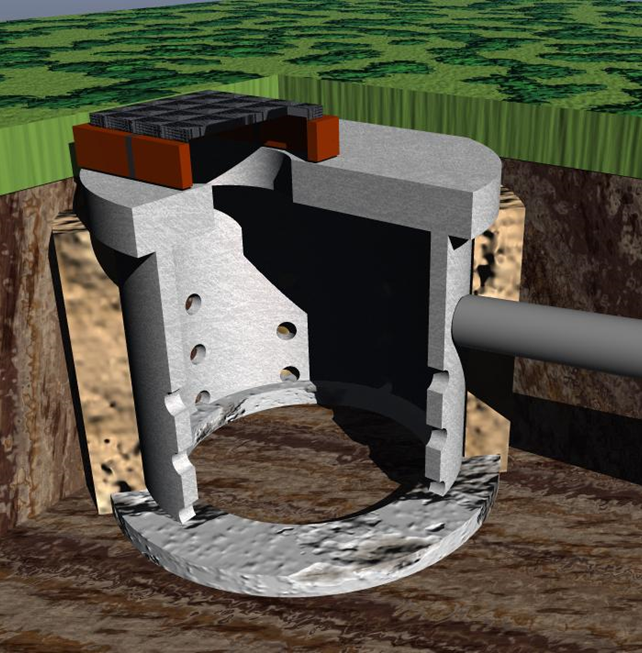

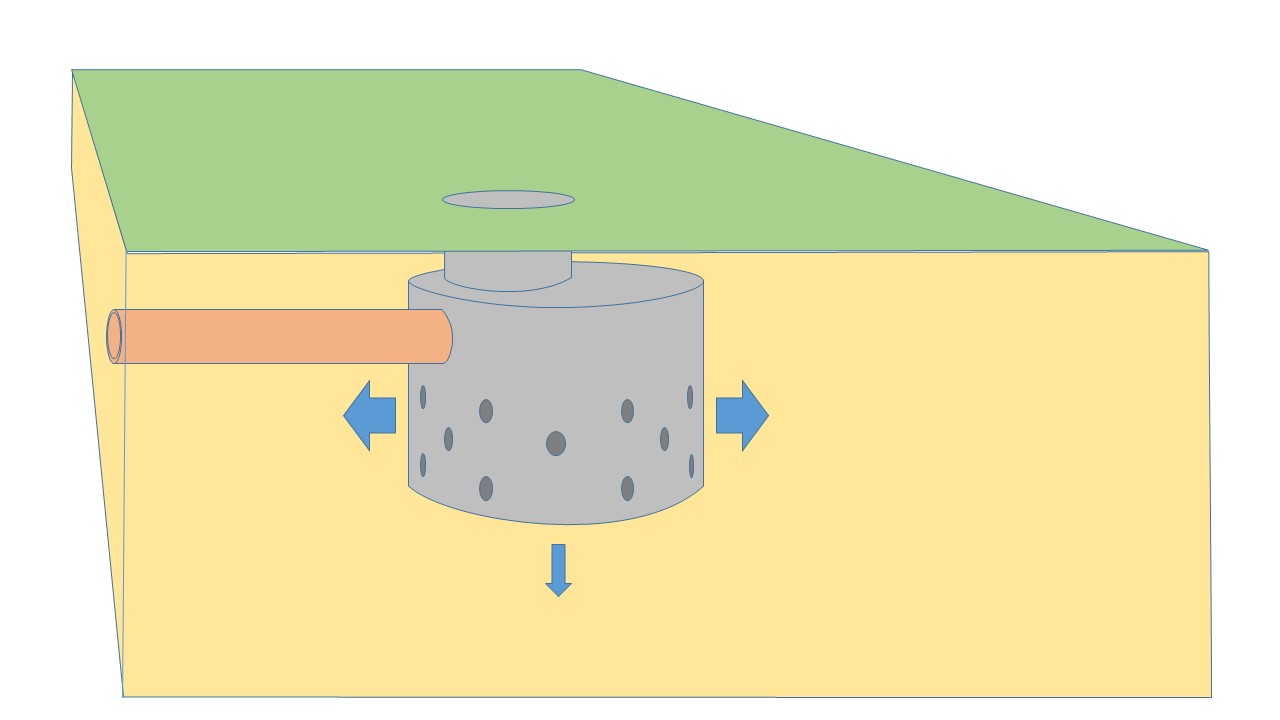

2.2 Ring Soakaway

  • Individual or multiple properties or areas draining to a pre-cast concrete chamber;
  • Standard construction and adopted by highways departments;
  • Typically 3-4m deep (with 1.2m deep inlet invert);
  • Typically designed to BS 365 and a 5 to 10 year design storm; although more common lately is to increase the design standard to meet site wide requirements;
  • Factor of safety for infiltration rate needs to be related to location and increased if flooding presents a risk (C697); and
  • Exceedance flows will need to be considered for the more extreme events.

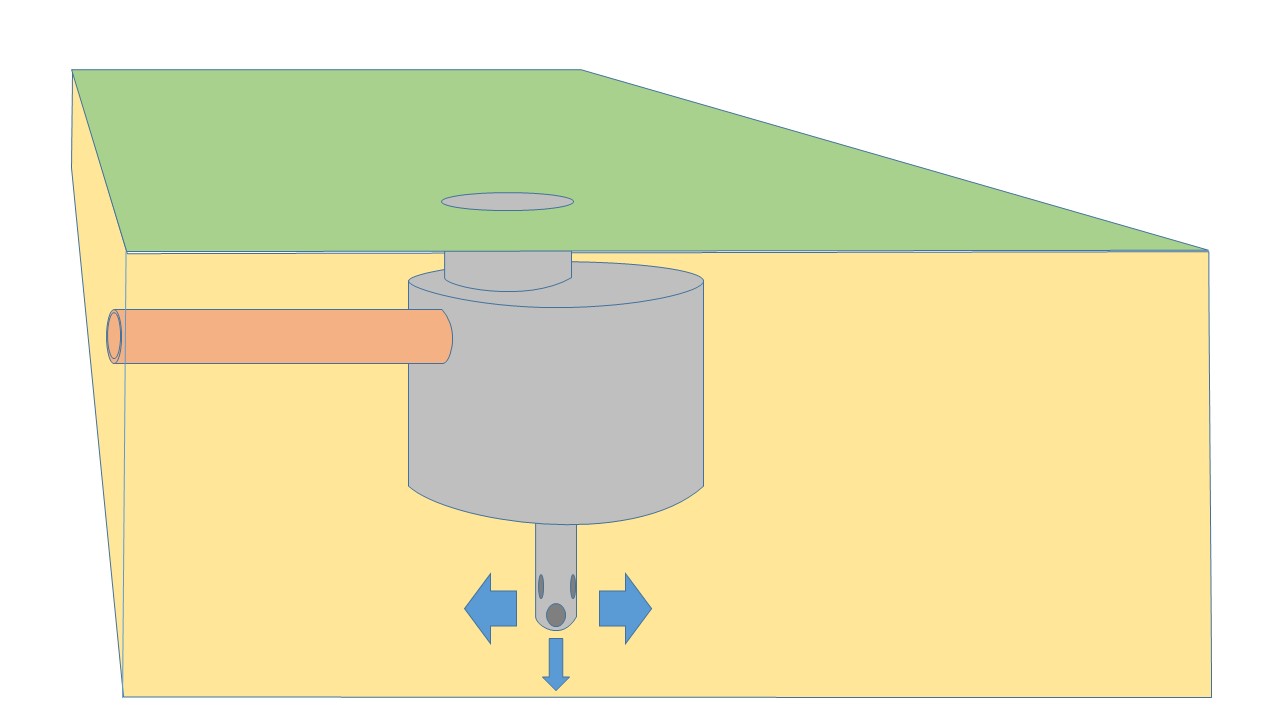

2.3 Deep Bore Soakaway

  • Individual or multiple properties or areas draining to a pre-cast concrete chamber constructed over a borehole soakaway;
  • Standard construction and adopted by highways departments (Example what if Ref: Kent County Council Design Guide);
  • Chamber typically 2-3m deep (with 1.2m deep inlet invert), borehole depth to suit strata;
  • Offset to development and structures can range from 10-15m depending on solution feature risk (get advice from geotechnical experts);
  • Factor of safety for infiltration rate needs to be related to location and increased if flooding presents a risk (C697); and
  • Exceedance flows will need to be considered for the more extreme events.

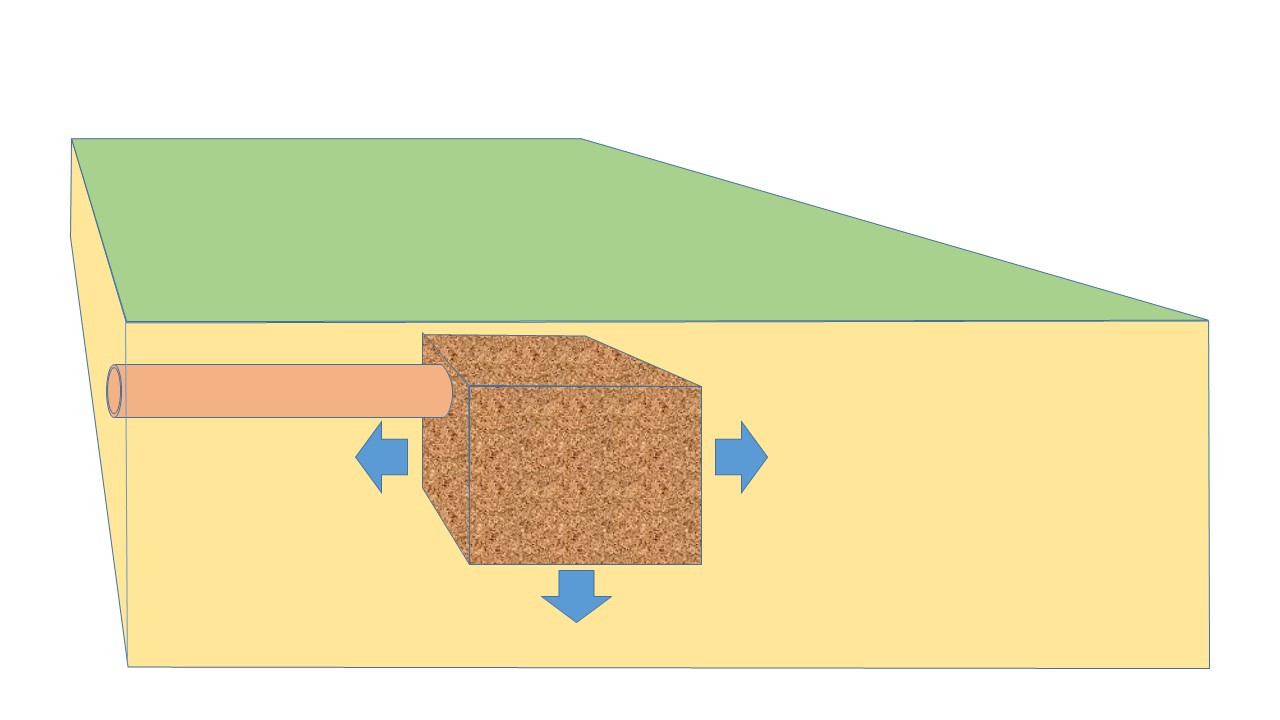

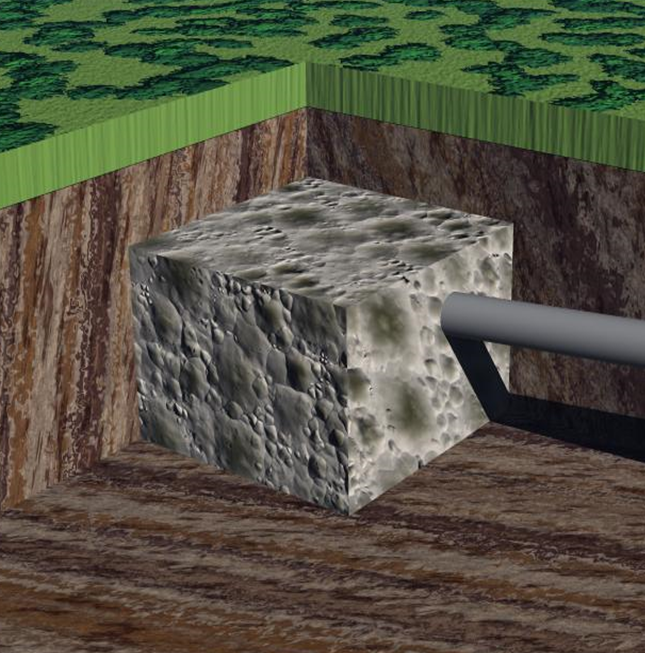

2.4 Trench and Modular Soakaway

  • Individual or multiple properties or areas draining to a rubble and/or modular cell filled trench usually located within the property boundaries;
  • Shallow construction, typically 1m3 / m run
  • Historically un-adopted systems;
  • Typically designed to BS 365 and a 10 year design life; although more common lately is to increase the design standard to meet site wide requirements;
  • Factor of safety for infiltration rate needs to be related to location and increased if flooding presents a risk (CIRIA C697); and
  • Exceedance flows will need to be considered for the more extreme events.
BACK TO TOP

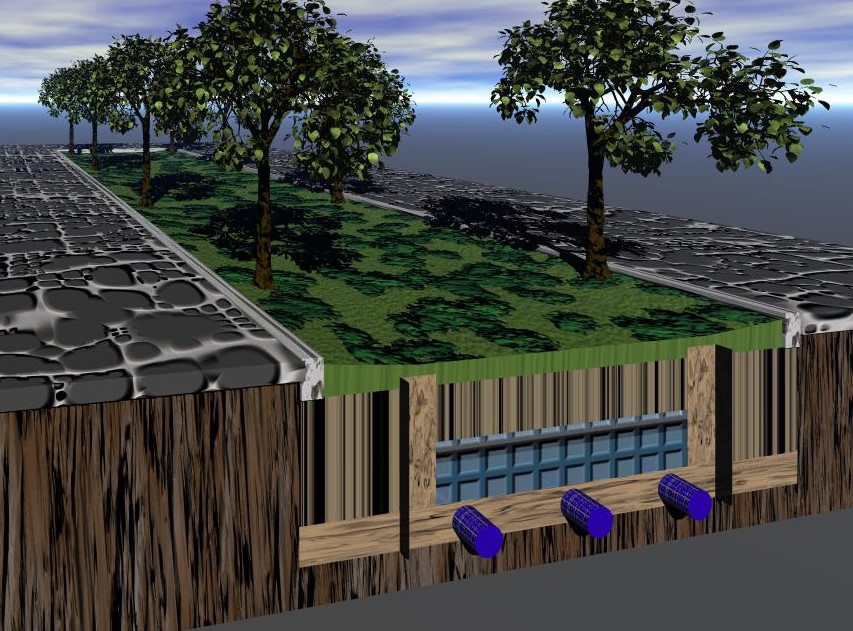

3. Pervious Pavements

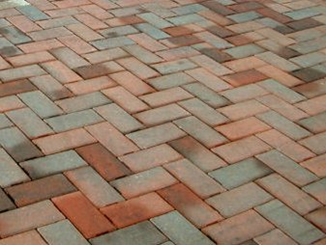

Pervious pavements can come in many forms, both in terms of the surface treatment as well as the sub-surface construction.

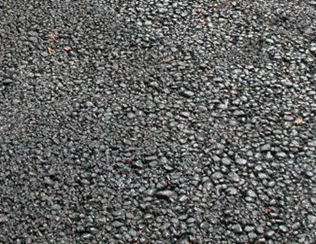

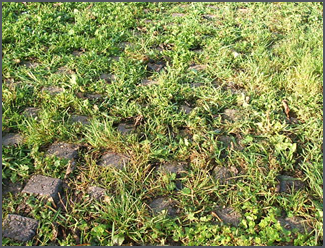

The paved surface can itself be “porous” such as porous blocks or porous asphalt or the structure as a whole is pervious such as block paving (with the joints providing the pathway for water) and reinforced grass systems (using spaces to allow plant growth and permeability)

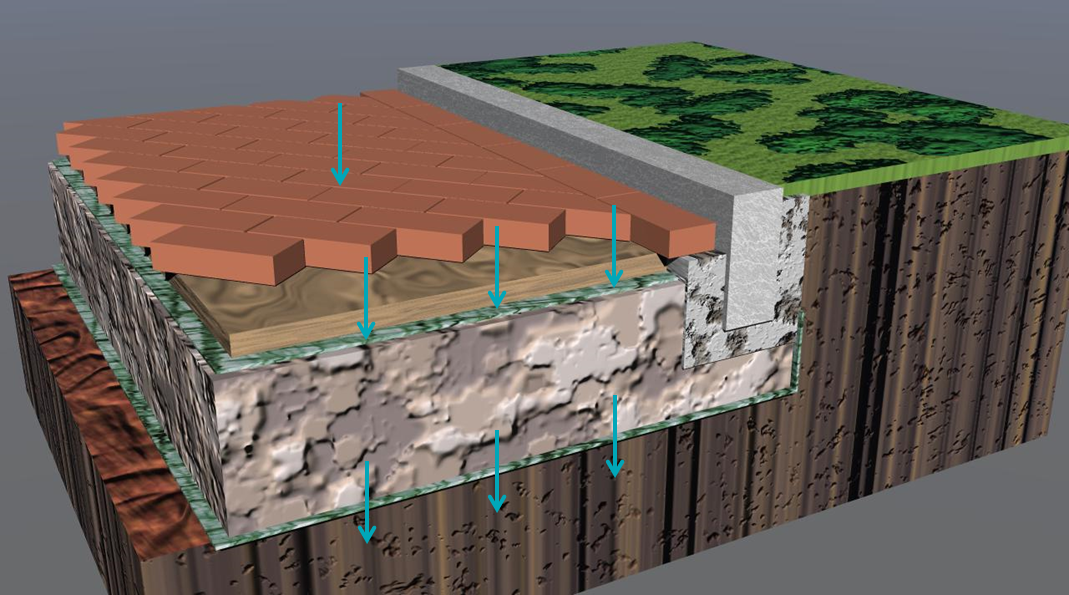

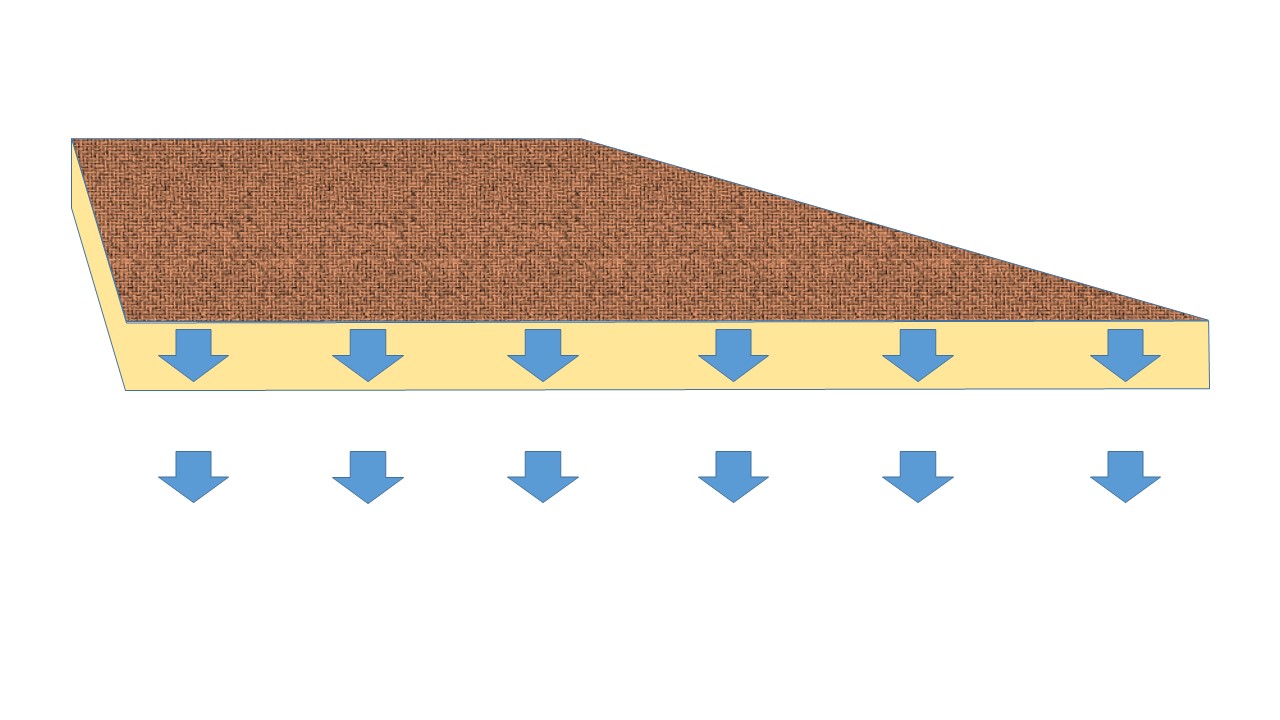

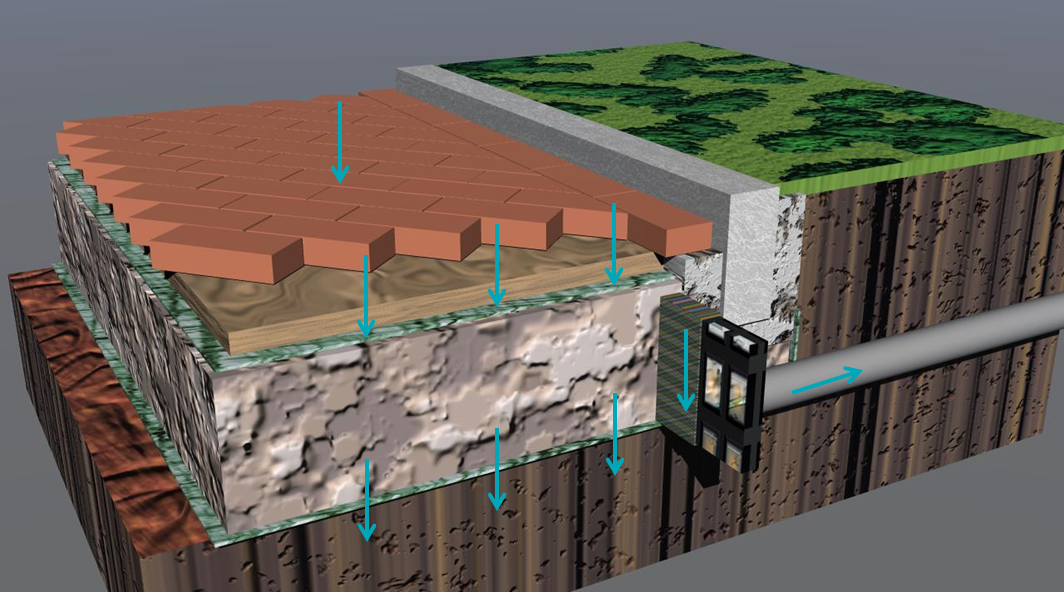

3.1 System A – Total infiltration

  • Water passes through the entire pavement before infiltrating into the ground
  • Zero Discharge to a sewer or drainage network
  • Must have minimum 1.0m clearance from the base to any groundwater

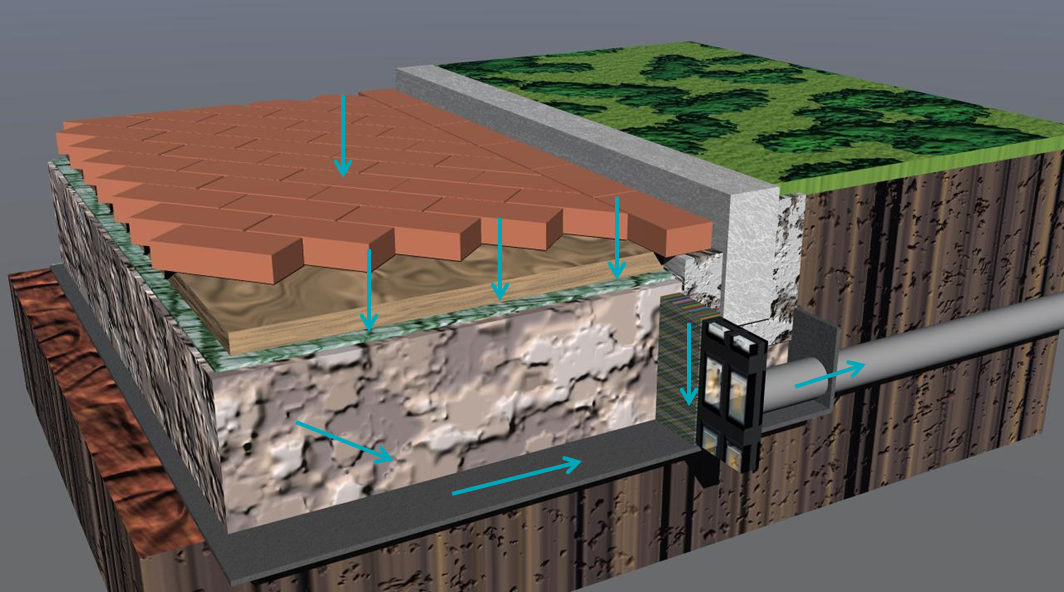

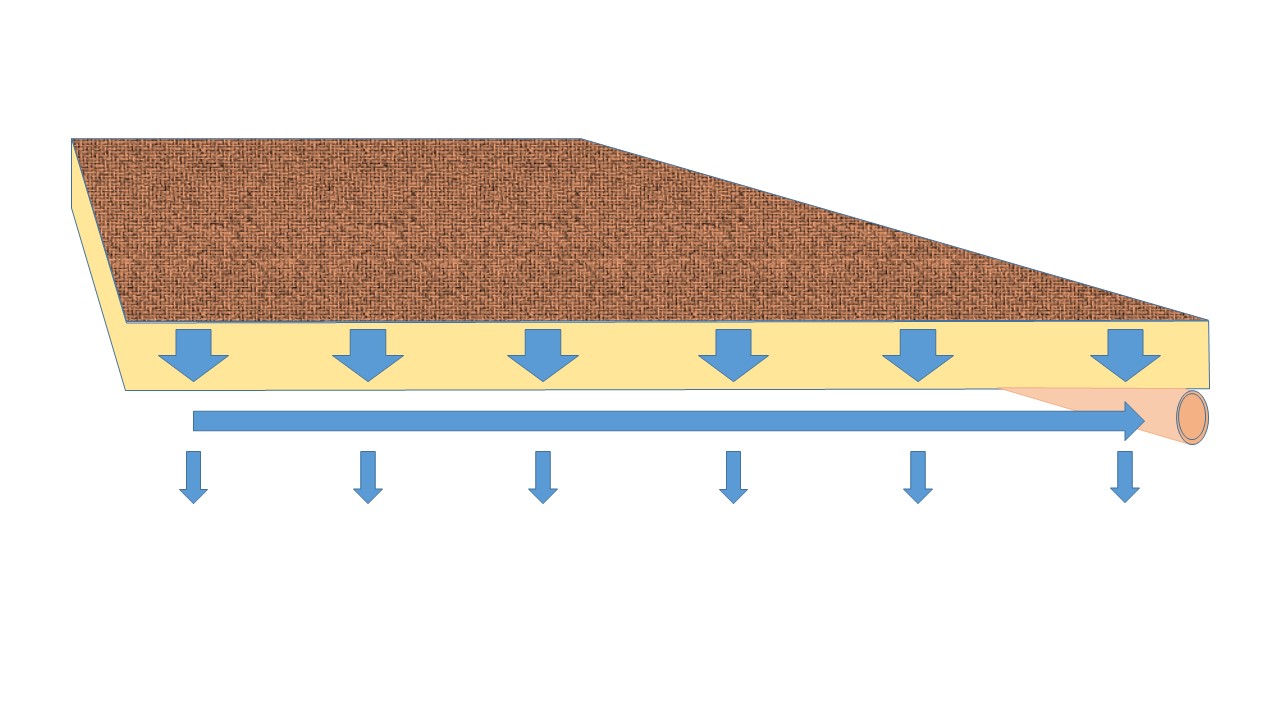

3.2 System B - Partial Infiltration

  • Allows some water to infiltrate, with remainder being drained by perforated pipes, fin drains to swales, drainage systems, etc
  • To control the areas where water is infiltrating (e.g. around a building)
  • Some discharge to a sewer or drainage network
  • Must have minimum 1.0m clearance from the base to any groundwater

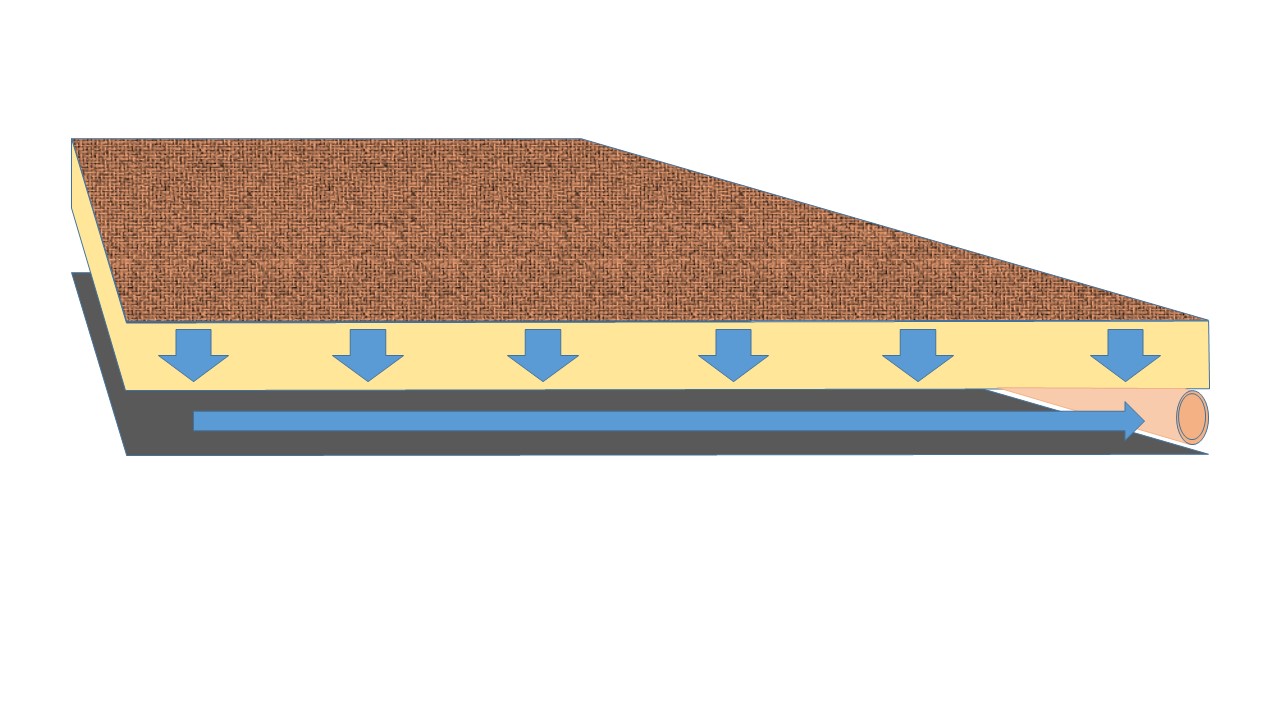

3.3 System C - No Infiltration

  • Use of a flexible geo-membrane at formation level prevents infiltration
  • Water removed by fin drains, perforated pipes to be discharged into drainage systems, swales, etc
  • All water is discharged to a sewer or drainage network
  • Can be closer to any groundwater (check for floatation effects) and prevents contact with contamination, made ground etc.

Consider

Determine underlying permeability and ground conditions (contamination and groundwater levels etc) and hence which paving “system” is to be designed.

How close to structures is the paving and taking additional inflows (roofs or other paved areas etc)?

Make sure paving is greater than 5m from the structure or use System C.

Is the paving separate from other surface water drainage?

Do you want to use the paving as attenuation for other areas?

Is the paving linked to other paving areas (more important for Systems B and C)

Where does the paving sit in the “SuDS Treatment Train”?

To maximise the storage within the sub-base, some form of flow control is required to simulate a virtual tank and maximise the utilisation of the available volumes.

MORE INFO: http://www.paving.org.uk/home/permeable-paving/

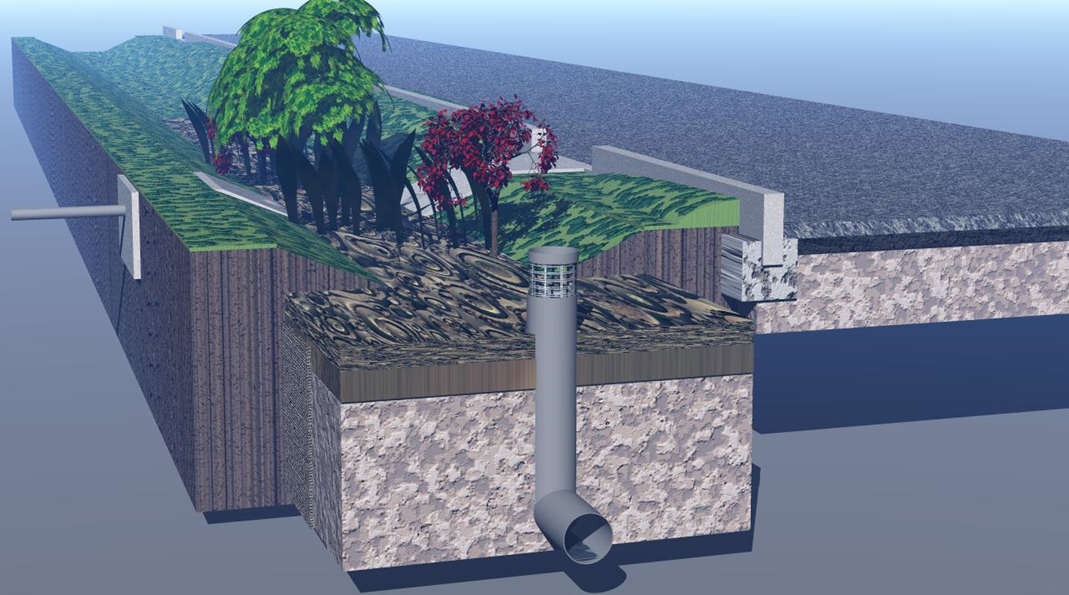

4. BIO-Retention

  • Shallow landscaped depression with engineered soils to filter runoff and can be under-drained to connect to main drainage system or allow waters to infiltrate.
  • Can be used for large hardstanding areas or landscaped sites.
  • Primarily a water quality feature with some above ground storage capability designed to treat the smaller more regular runoff events.
  • For larger events, and overflow may be required

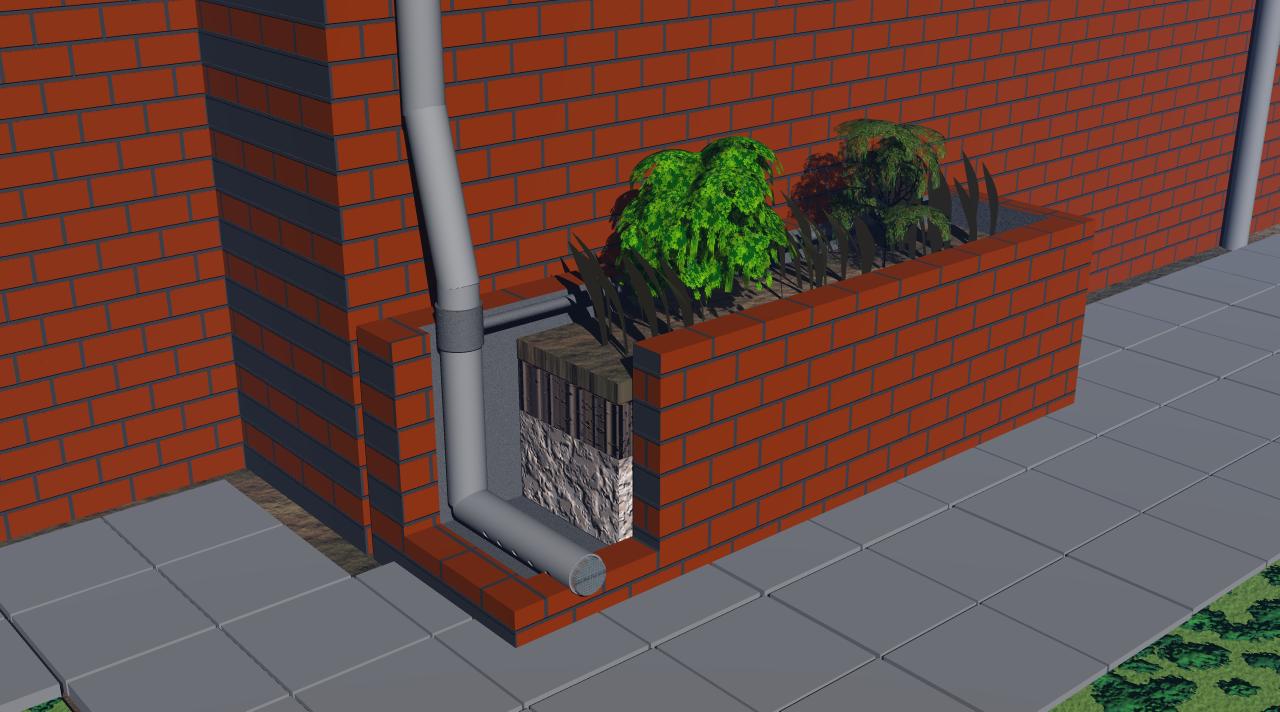

5. Rain Gardens

  • Shallow landscaped depression or above ground tank with engineered soils to filter runoff and likely to be under-drained to connect to main drainage system or allow waters to infiltrate.
  • Primarily a water quality feature with some above ground storage capability designed to treat the smaller more regular runoff events.
  • Commonly used to disconnect development rainwater pipes from a network
BACK TO TOP

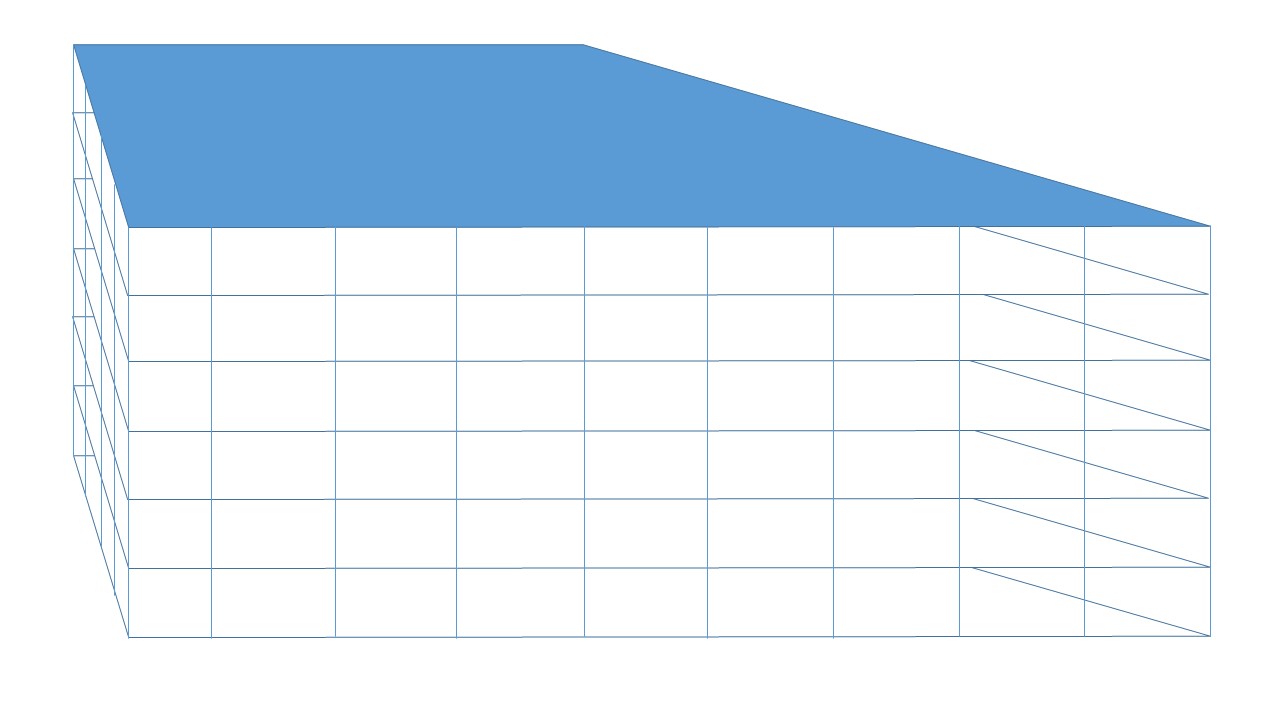

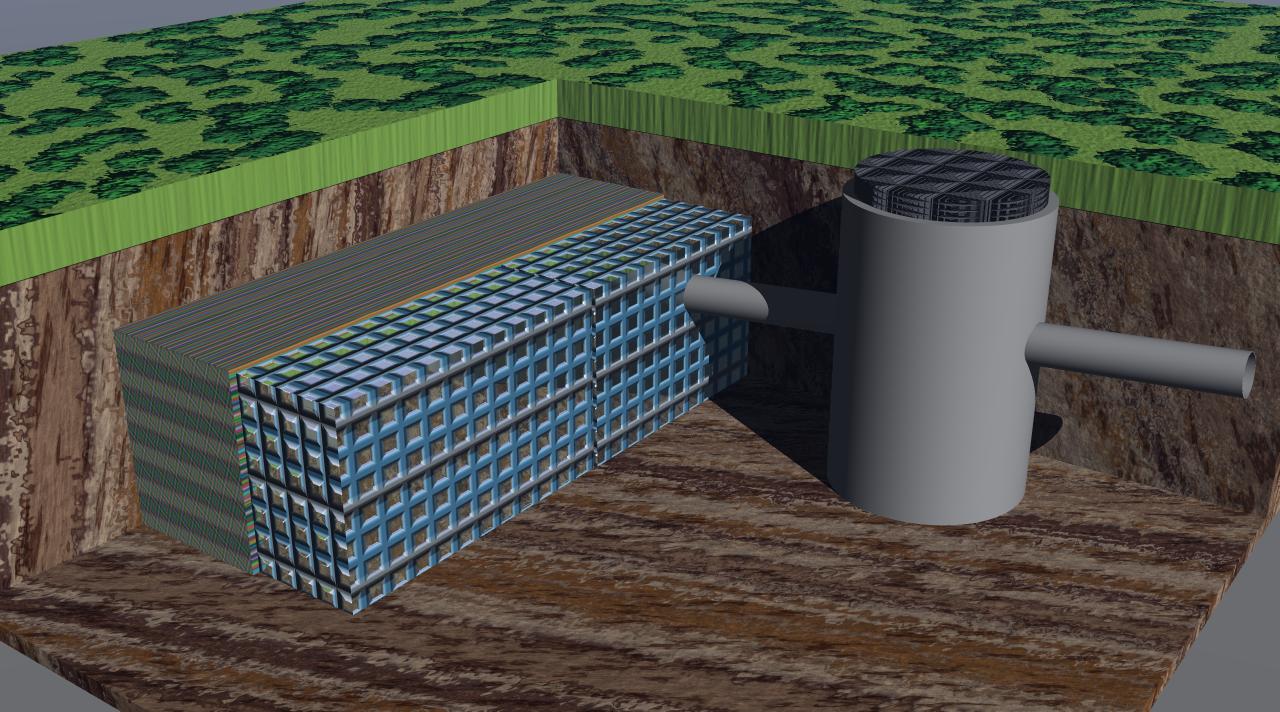

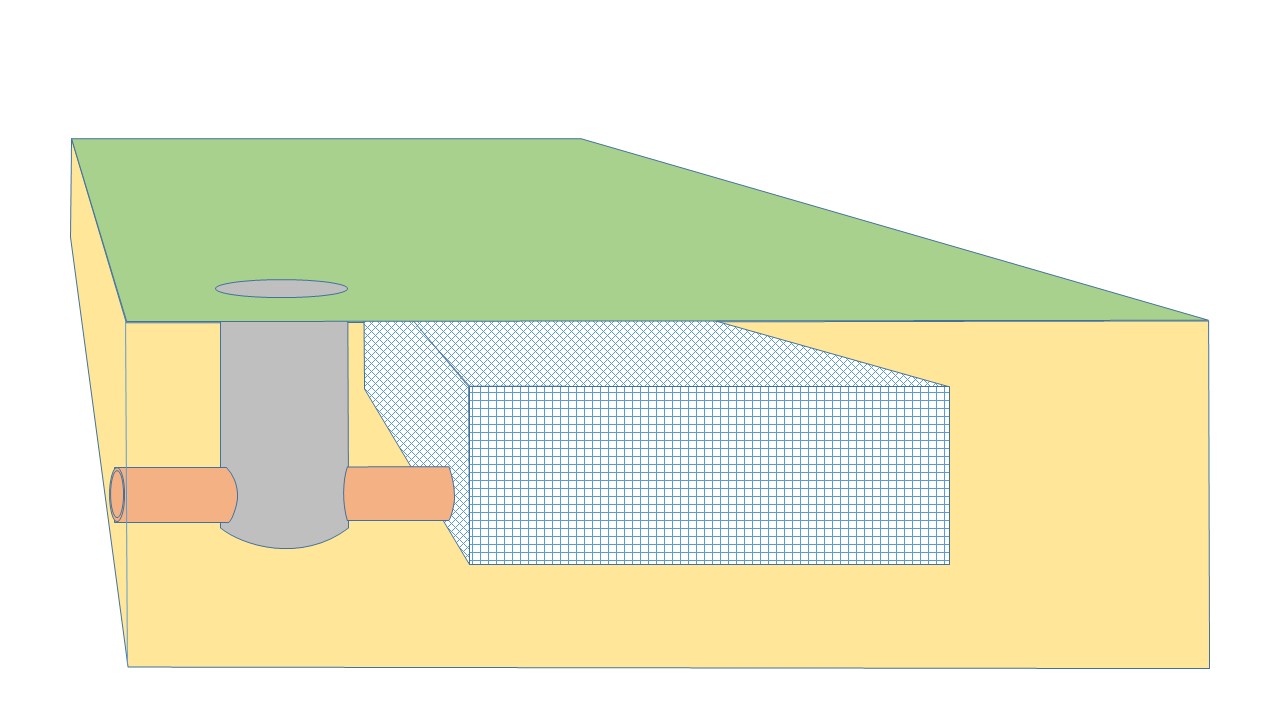

6. Storage Tanks

A traditional way to provide additional storage volume on a drainage network can be by increasing the size of the pipework or manholes or providing tanks. Although not meeting all the requirements of SuDS, they can provide attenuation to a system when outflows are restricted.

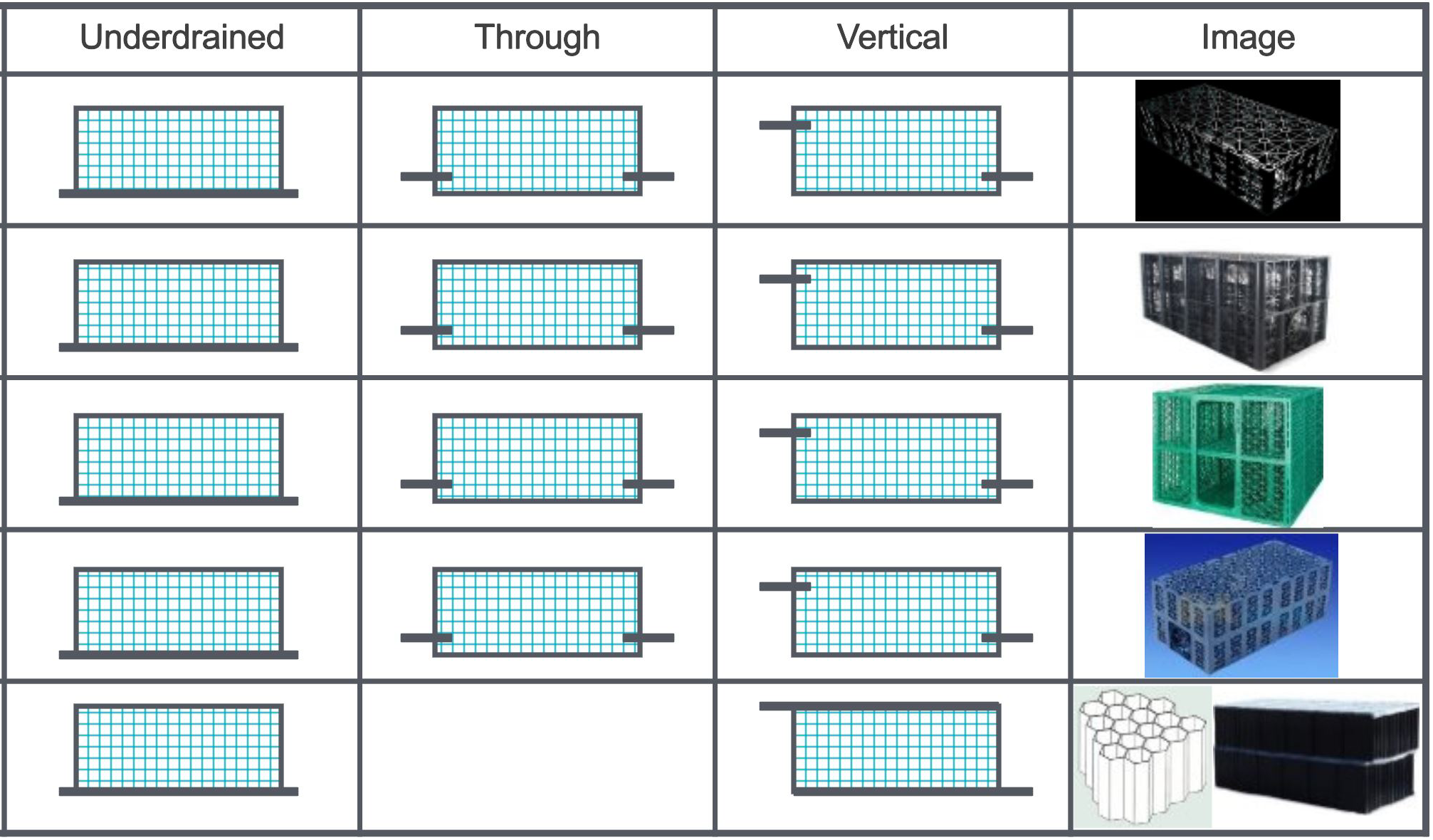

There are many types and configurations for tanks and each has to be considered in relation to its location, the loading it is likely to be subject to, how deep it is.

  • Some are structurally strong in all directions and other only from surface loading.
  • If tanks are filled from the base upward, then vents are required to prevent build-up of internal air pressure.
  • As a sealed void, can the tank be subject to external groundwater pressures that could lead to floatation forces?
  • If wrapping with an impermeable membrane, don’t use too many internal corners as this would compromise the waterproof integrity of the tank.
  • Allow for access and cleaning

When considering the use of a tank, of any manufacture, consider its structural components and loadings. NOT ALL TANKS SYSTEMS ARE THE SAME

BACK TO TOP

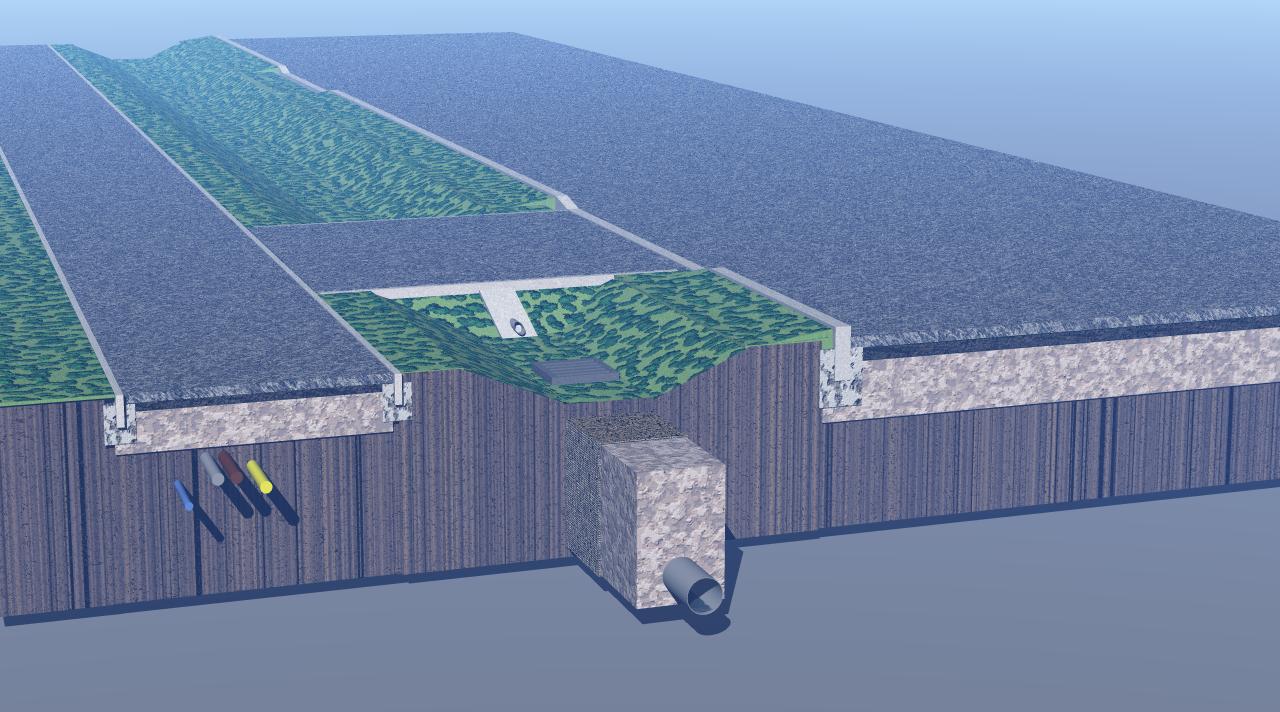

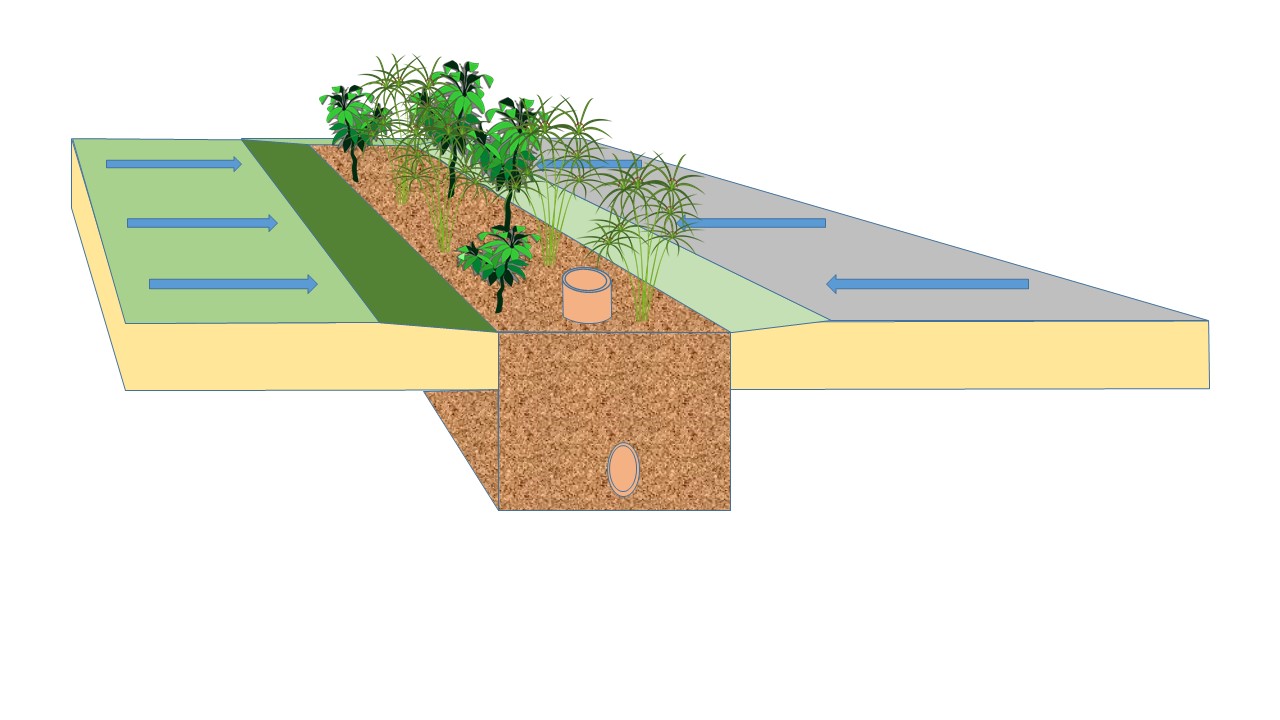

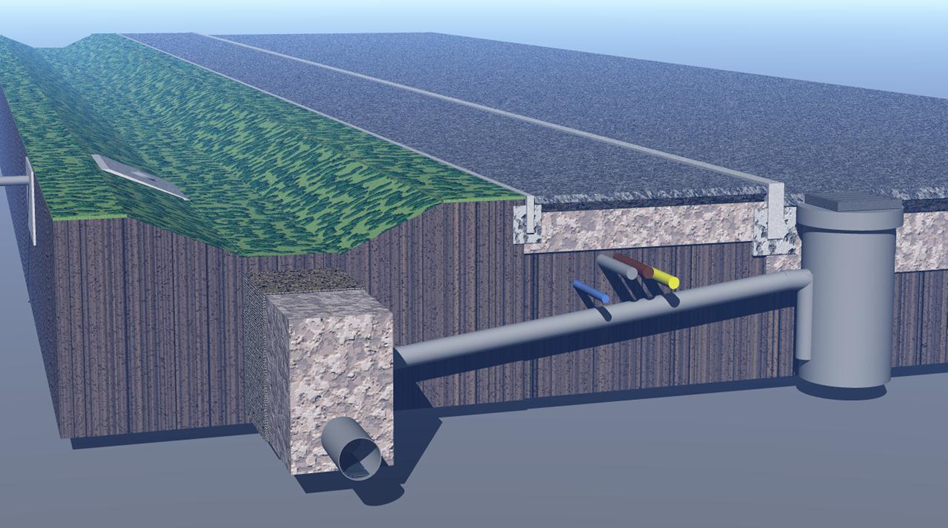

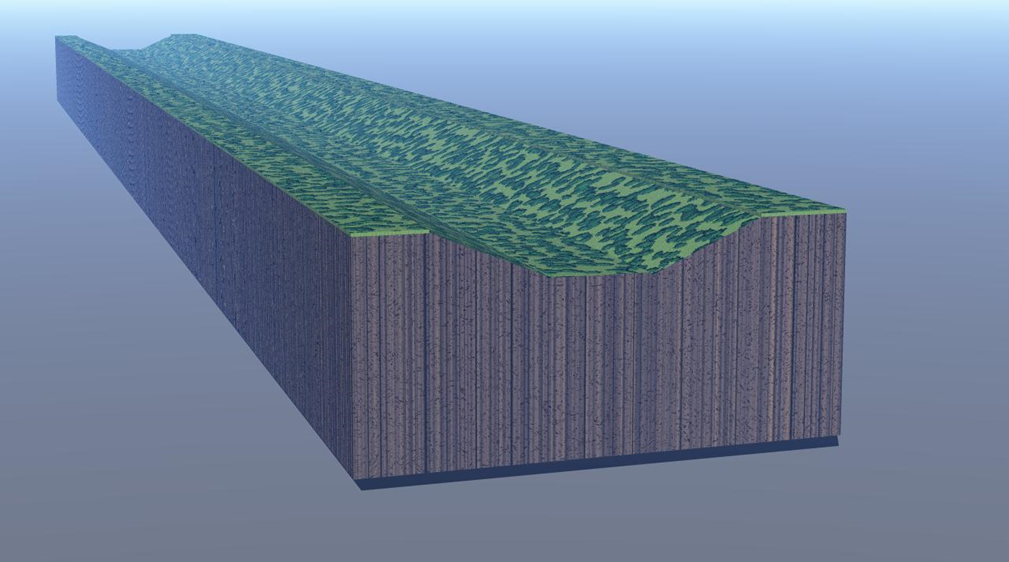

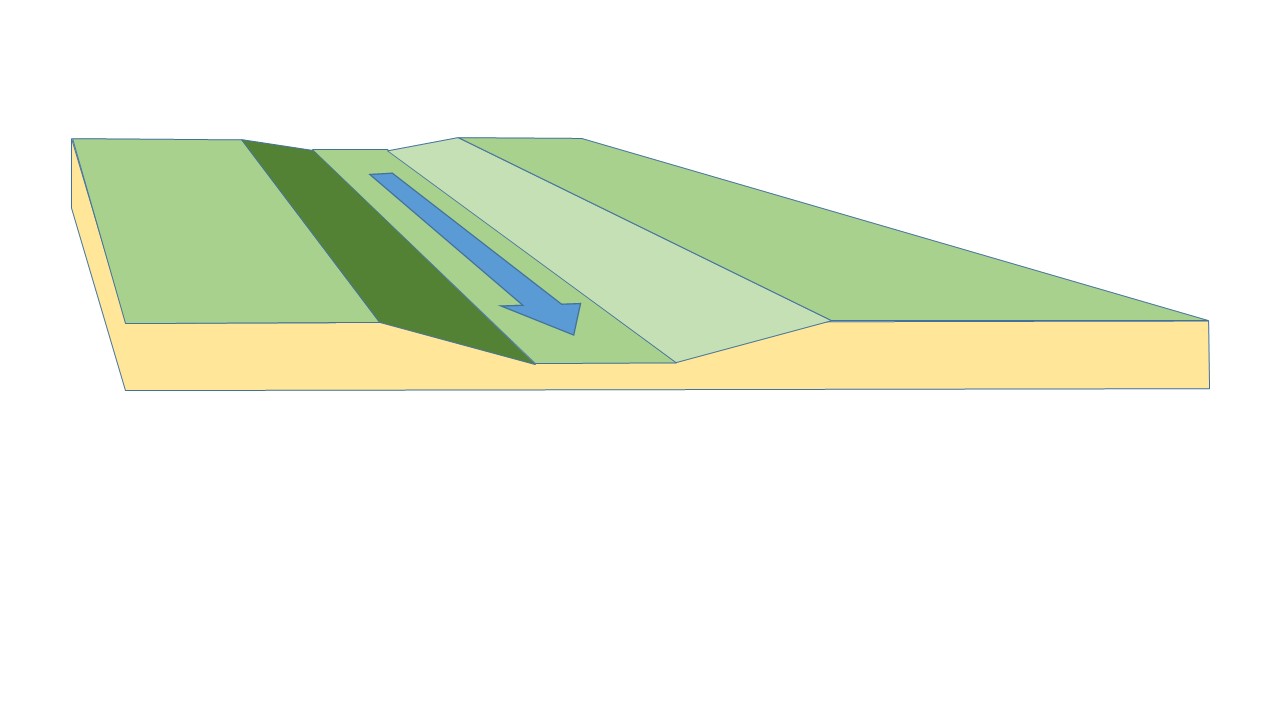

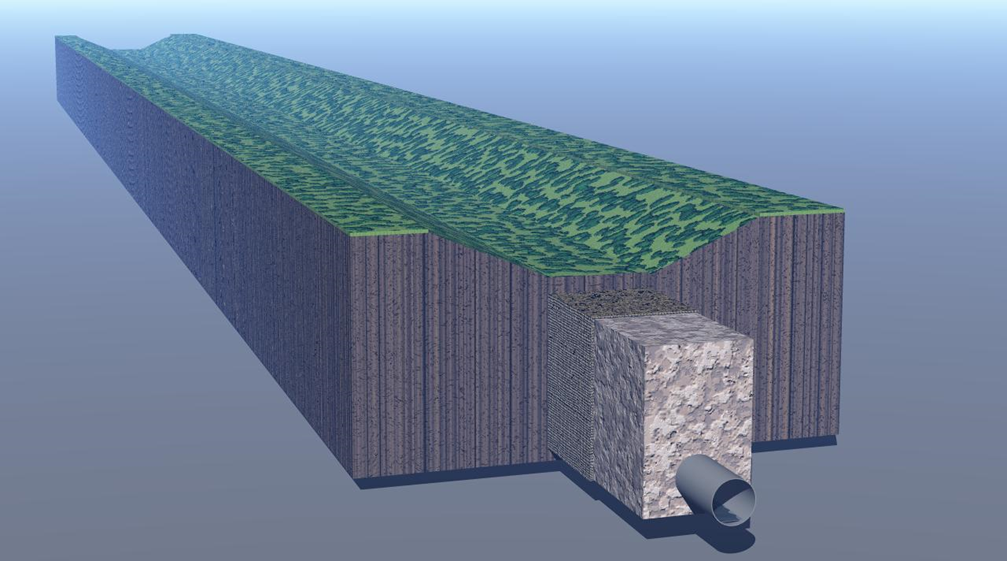

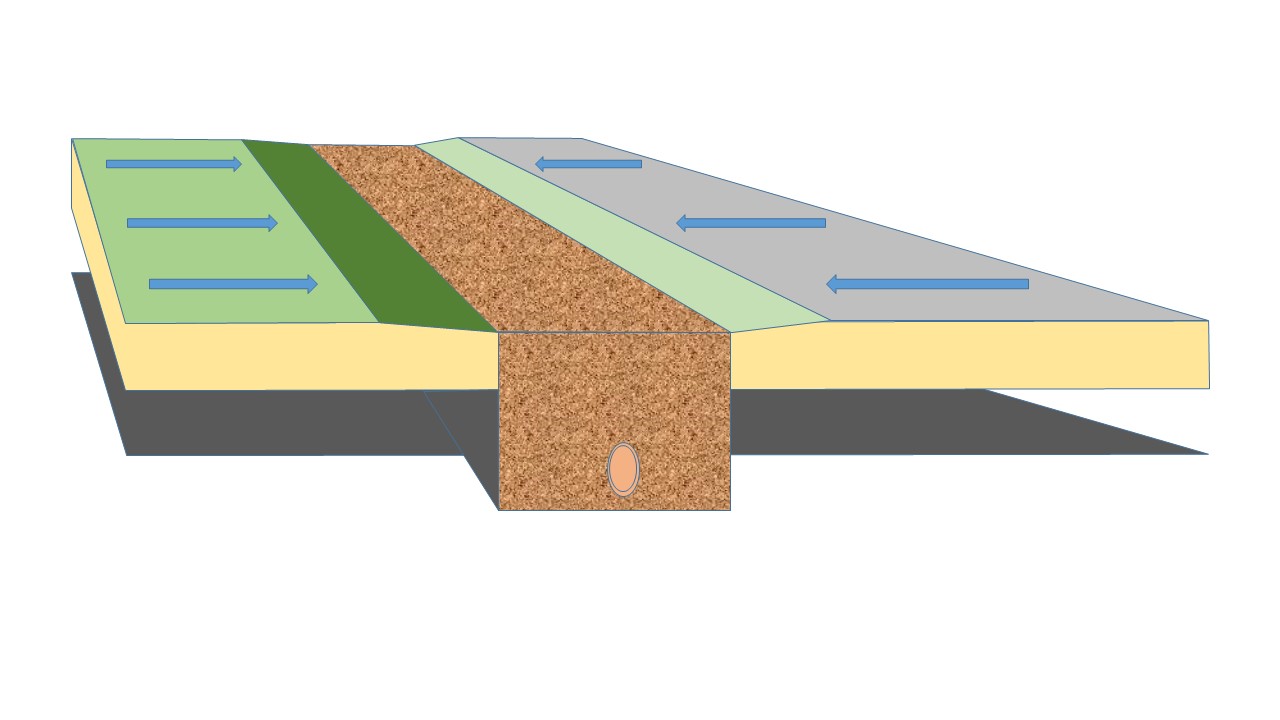

7. Swale

Shallow landscaped longitudinal depression using vegetation to filter runoff

Shallow gradients and side slopes

Primarily conveyance but offers some attenuation

Can allow infiltration along its length or be lined if ground condition require separation of the surface water from the underlying soils.

Can include an infiltration trench or conveyance pipework beneath to increase capacity and allow crossings of the swale by footpaths, driveways etc.

Typically alongside highways but can be used in landscaped areas

Need to consider utilities and other crossings (as all SuDS components should)

On steeper sites, consider check dams to restrict flows between swale sections

BACK TO TOP

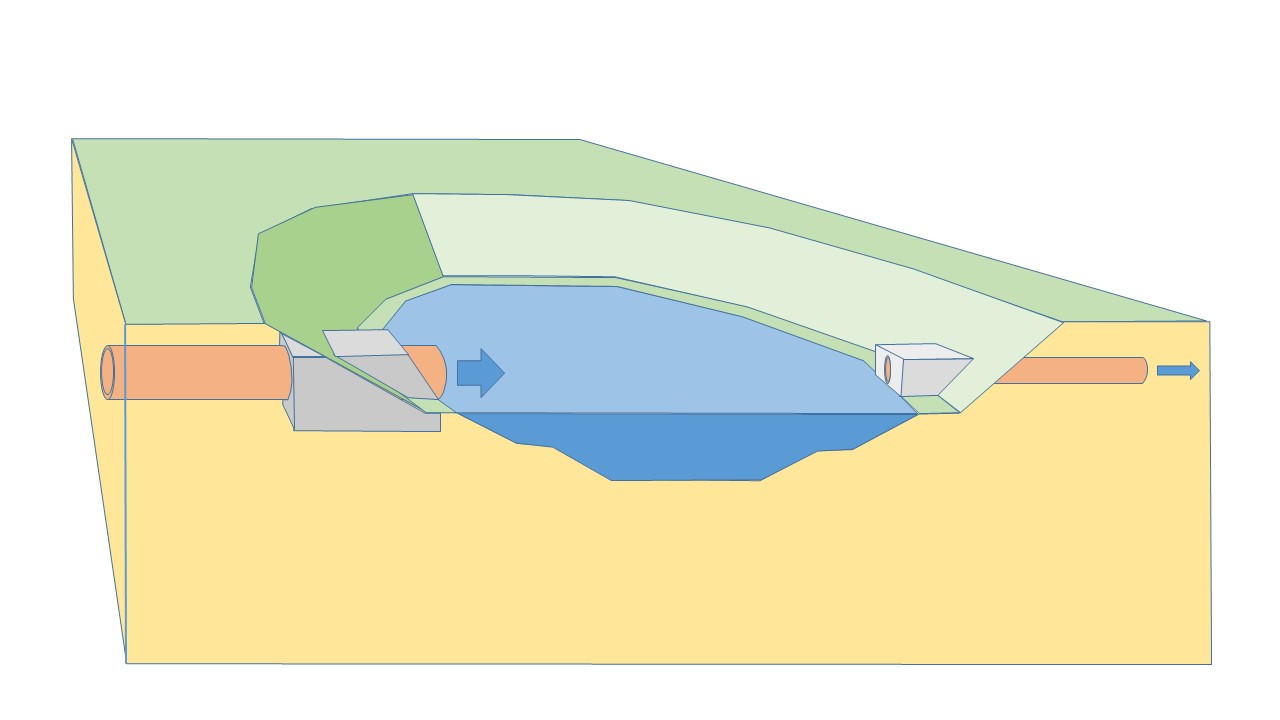

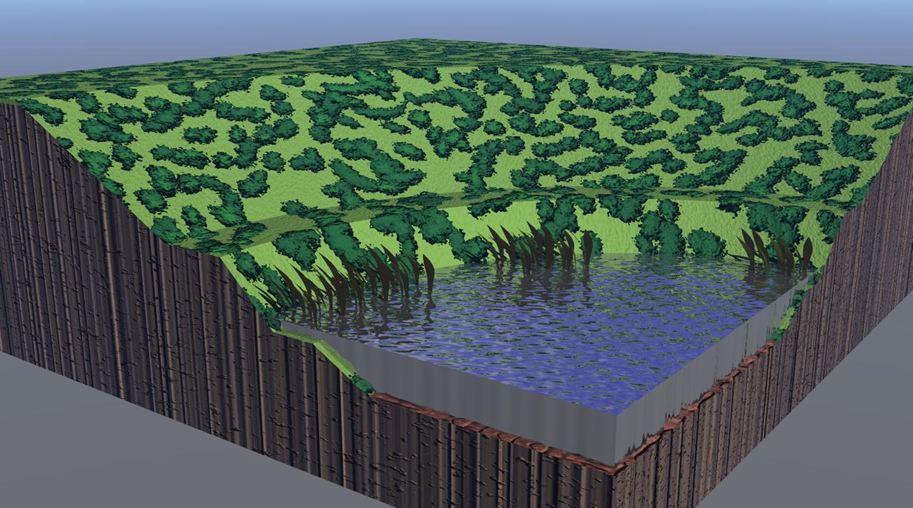

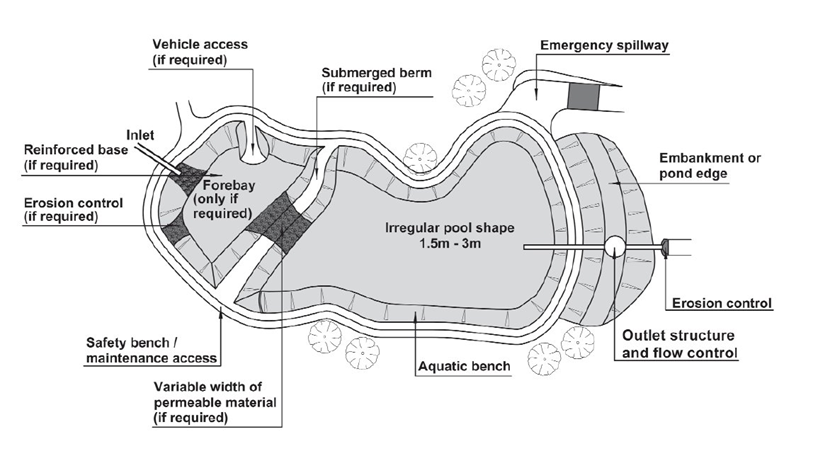

8. Pond, Basin, Wetland

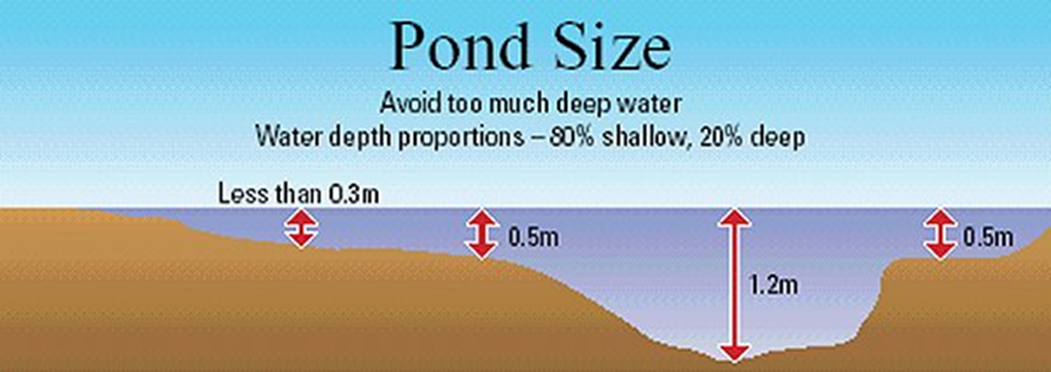

Retention ponds can provide both stormwater attenuation and treatment.

They are designed to support emergent and submerged aquatic vegetation along their shoreline.

Runoff from each rain event is detained and treated in the pool. The retention time promotes pollutant removal through sedimentation and the opportunity for biological uptake mechanisms to reduce nutrient concentrations.

Detention basins are surface storage basins or facilities that provide flow control through attenuation of stormwater runoff.

They also facilitate some settling of particulate pollutants.

Detention basins are normally dry and in certain situations the land may also function as a recreational facility.

Wetlands provide both stormwater attenuation and treatment.

They comprise shallow ponds and marshy areas, covered almost entirely in aquatic vegetation.

Wetlands detain flows for an extended period to allow sediments to settle, and to remove contaminants by facilitating adhesion to vegetation and aerobic decomposition.
